Hydraulic Bender

Output(Ton):20. Applicable to indoor electrical wires, water pipes, gas pipes, thick pipes, fire-fighting, and other bending engineer. It can bend and curve smoothly at different angles without wrinkles.
Model : P-20IN

Output(Ton):20
Thick Steel Tube(B):D16(1/2")~D82(4")
Gas Pipe(SGP):D15(1/2")~D100(4")
Main Tool Weight(Kg):52.4KG

Product Introduction

  • Applicable to indoor electrical wires, water pipes, gas pipes, thick pipes, fire-fighting, and other bending engineer. It can bend and curve smoothly at different angles without wrinkles.
  • The max. bending angle: 90 degrees. The max. bending diameter: 3”.It can complete bending 1/2"~2" diameters at once and approx. five times for the 2 1/2"~3" without depression.

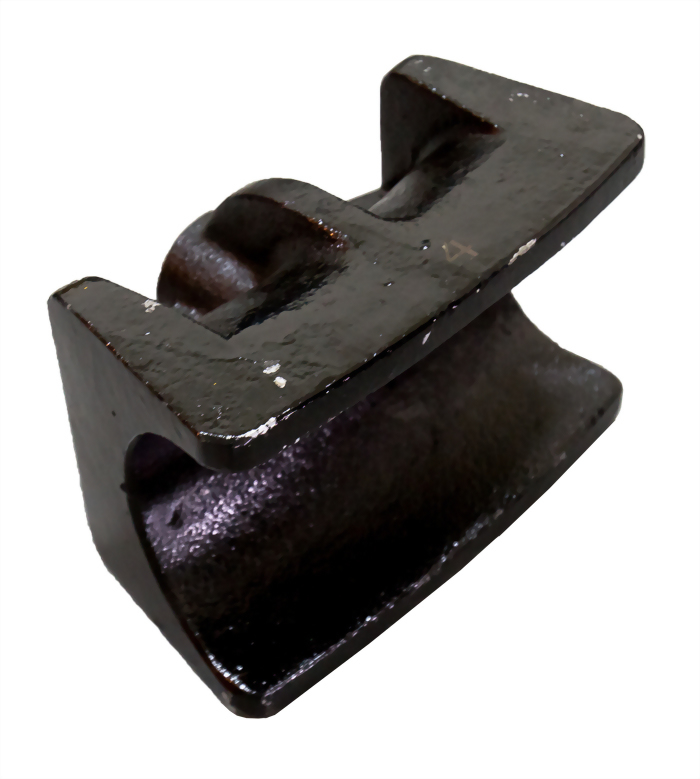

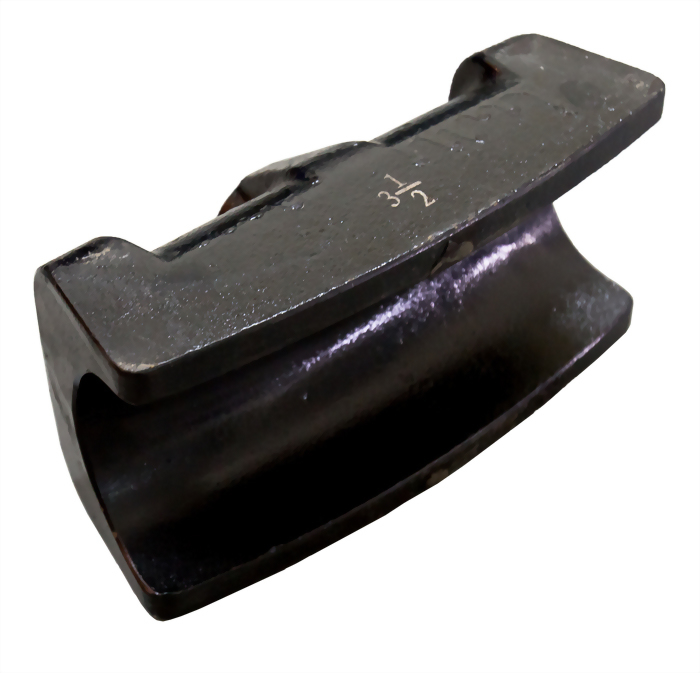

  • Meets the piping demand, using aluminum alloy and ductile iron as alternatives for materials of bendingdies.
  • Need to coordinate with hydraulic pump.
